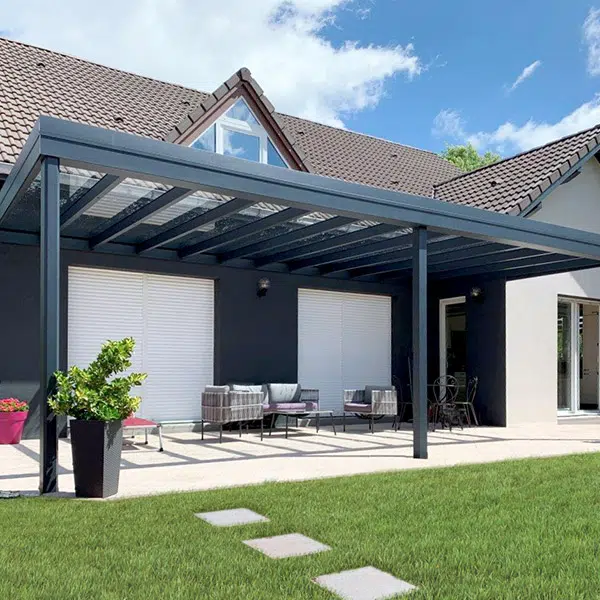

Patio
- Long reach
- Invisible fixing of posts to the ground and to the gutter
- Attached or detached to a house
Technical Informations
- Filling thickness : 9/16/25/32 mm
- Permissible slope : 5° à 20°
- Rafter height : 115 mm
- Rafter width : 60 mm
- Width of one-piece gutter : 180 mm
Options
- 3 choices of raising gutters
- 2 choices of rafter caps: aluminium and EPDM
- Invisible fixing of posts to the ground and to the gutter
Patio SE
- Variable corner rafter
- Invisible fixing of posts to the ground and gutter
- Several possible configurations
Technical Informations
- Filling thickness : 9/16/25/32 mm
- Permissible slope : 5° à 15°
- Rafter height : 105 mm
- Rafter width : 80 mm
- Width of one-piece gutter : 177 mm
Options
- 3 choices of raising gutters
- Invisible fixing of posts to the ground and gutter
- Several possible configurations, also on the periphery
- Attached or detached to a house
Patio ST
- Minimalist design
- Invisible fixing of posts to the ground and to the gutter
- Attached or detached to a house
Technical Informations
- Filling thickness : 9/16/25/32 mm
- Permissible slope : 5° à 15°
- Rafter height : 100 mm
- Rafter width : 60 mm
- Width of one-piece gutter : 177 mm
Options
- 3 choices of raising gutters
- 2 choices of rafter caps: aluminium and EPDM
- Invisible fixing of posts to the ground and gutter
- Perimeter mounting possible
- 3 choices of posts
