Allure 61
- Ultra-compact design
- Contemporary look
- High-performance insulation
Technical Informations
- Depth frame : 61 mm
- Depth vent : 69 mm
- Glazing thickness : 23 to 45 mm
- Glazing bead height : 20.5 mm
- Frame height : 44.5 mm
- Frame and vent height : 80.5 mm
- Polyamide strip : 24 mm
Options
- Straight or curved glazing beads
- 7 mm fork or square operating mechanism
- Standard or concealed hinge
- Visible drainage

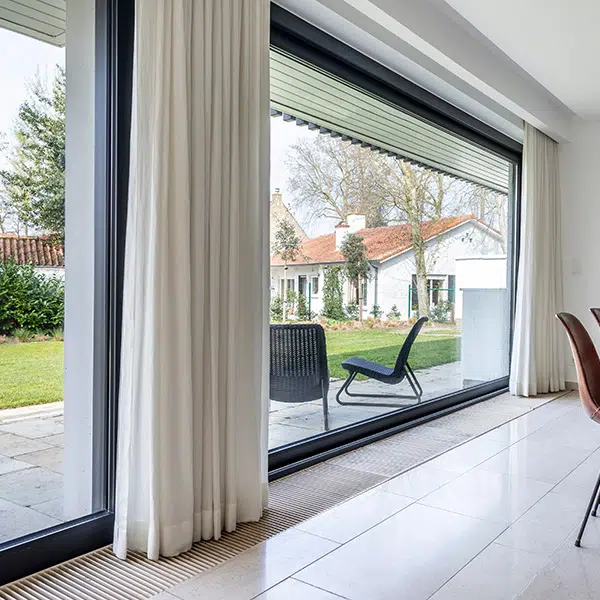

Allure 69
- Ultra-compact design
- Ultra-full configuration with Cover software
- High-performance insulation
Technical Informations
- Depth frame : 69 mm
- Depth vent : 77 mm
- Glazing thickness : 23 to 53 mm
- Glazing bead height : 20,5 mm
- Frame height : 44,5 mm
- Frame and vent height : 80,5 mm
- Polyamide strip : 32 mm
Options
- Stylized or straight vent profile
- Straight or curved glazing beads
- 2 levels of thermal insulation
- Concealed drainage possible
- 7 mm fork or square operating mechanism
- Standard or concealed hinges
- PVC sill with joint cover support
